What is HP-RTM?HP-RTM process technology is a new type of RTM process technology introduced in recent years, which is suitable for mass production of high-performance thermosetting composite components.

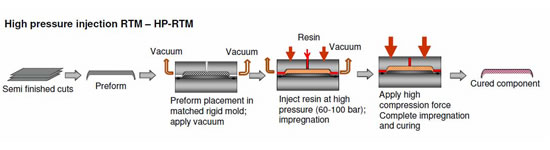

It adopts pre formed parts, steel molds, vacuum assisted exhaust, high-pressure injection, and resin impregnation and solidification process under high pressure, achieving low-cost, short cycle (mass production), and high-quality production.

The main advantages of HP-RTM are:

1、The resin quickly fills the mold cavity.

2、Improved the quality of resin impregnated reinforcement materials.

3、Accelerating resin reactivity systems can achieve short curing cycles.

4、The removal of air and the reduction of product pores are of great significance.

5、The product has excellent surface performance and quality.

6、The deviation between the thickness and three-dimensional shape dimensions of the product is low.

7、It has high process stability and repeatability.

8、Use internal release agent and self-cleaning system.

HP-RTM meets the following requirements:

1、Very good materials and high component performance.

2、The surface quality requirements for the other part are very high.

3、Short Makespan.

4、Possess the ability to use rapidly curing resins.

5、Possess large-scale industrial production capacity.
